Description
The Quansheng Taiko Kong TK11 builds upon the hugely successful Quansheng UV-K5 which became popular due to it’s hackable firmware that enabled a host of innovative features to be added by the community. Designed for both novice and experienced ham operators, this device offers versatility and reliability that makes it stand out in the field of handheld radios.
User-Friendly Design
One of the standout features of the Taiko Kong TK11 is its intuitive user interface. The 1.44-inch ice blue display provides excellent readability, even in challenging lighting conditions. Its front-facing 19-key keypad with dedicated PTT and programmable shortcut keys ensures quick access to essential functions, making it easy to navigate through settings and frequencies.
Multi-Band Operation
This device supports five key frequency bands: 10m (28-29.8MHz), 6m (50-54MHz), 4m (70-70.5MHz), 2m (144-148MHz), and 70cm (420-450MHz), plus wideband receive. This broad coverage allows operators to engage in local, regional, or global communication with ease. Whether you’re participating in a casual net or attempting long-distance DX contacts, the TK11 delivers reliable performance across its entire frequency range.
Battery Life and Portability
With a 2500mAh battery (or 3000mAh on the TK11(8) model), the Taiko Kong TK11 offers extended operating time, making it ideal for field operations or emergency communication scenarios. Its compact dimensions (126mm x 58mm x 34.5mm) and lightweight design (301g) ensure portability without compromising functionality. The device also supports both base charger and USB Type-C charging, providing flexibility in recharging options.

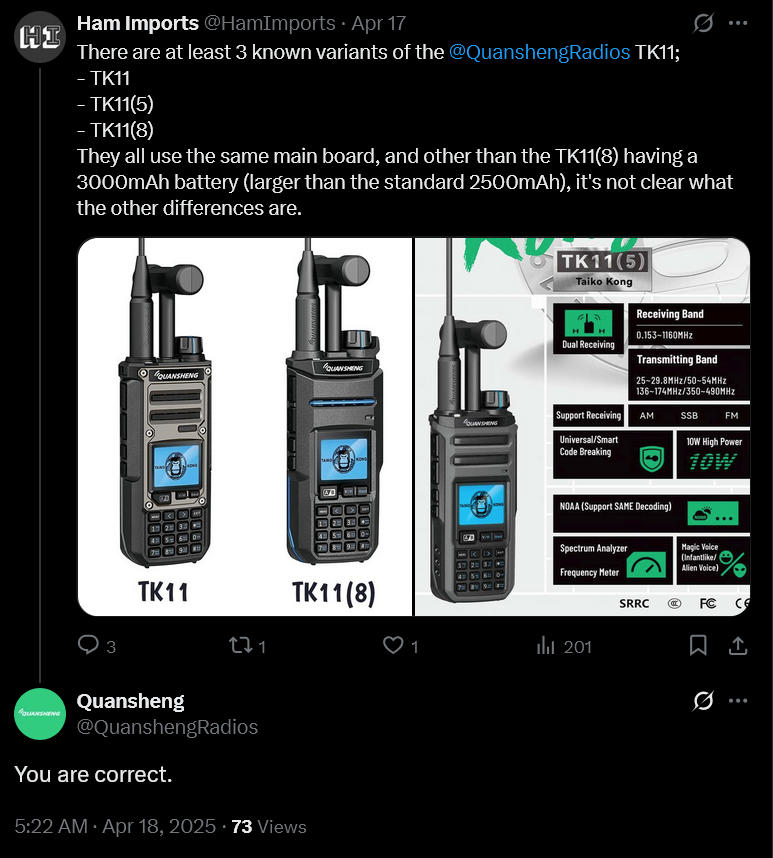

Key Differences Between Models
While they all use the same main circuit board, there are a few minor differences between the variants of the TK11:
- TK11 – 2 black stripes on metal speaker grill with Allen bolts, 2500mAh battery
- TK11(5) – 2 black stripes on integrated speaker grill, 2500mAh battery
- TK11(8) – 1 blue stripe on integrated speaker grill, 3000mAh battery
Advanced Features for Ham Operators
Beyond its core communication capabilities, the Taiko Kong TK11 includes several features that appeal to ham radio enthusiasts. The device is equipped with a spectrum analyzer and frequency meter, allowing operators to monitor signal activity on a wide range of frequencies simultaneously, and optimize their settings for better performance. Additionally, its Magic Voice feature enables users to transmit in infant-like or alien voice modes, adding a unique touch to communications, although these should not be used on the ham bands.
Specifications and Performance
- Channel Capacity: 999 channels provide ample storage for your favorite frequencies.
- Output Power: A maximum of 10W ensures strong signal transmission, ideal for long-range communication.
- Sensitivity: FM sensitivity of -121dBm and WFM sensitivity of -108dBm ensure high-quality reception even in challenging conditions.
- Speaker Quality: The 16-ohm, 1W speaker delivers clear audio output, making it easier to hear important messages in noisy environments.
Enhancements Over Previous Models
Built on the success of Quansheng’s UV-K5 model, the Taiko Kong TK11 introduces several upgrades. The expanded frequency range, increased output power, and enhanced battery life reflect Quansheng’s commitment to meeting the evolving needs of ham radio operators. These improvements make the TK11 a versatile tool for both casual and serious communication enthusiasts.
Final Thoughts
The Quansheng Taiko Kong TK11 is more than just another handheld radio; it’s a comprehensive solution for amateur radio operators seeking reliable performance and advanced features. Its combination of user-friendly design, robust functionality, and long battery life makes it an excellent choice for a wide range of applications. Whether you’re exploring new frequencies or engaging in routine communication, the TK11 delivers the performance needed to excel in the ham radio world.
After the amazing things achieved by the community with the UV-K5 firmware, it will be exciting to see what can be done with the TK11.
Gallery
Video
Specifications
| Bands: | 10m / 2m / 4m / 6m / 70cm / Airband RX / FM Broadcast RX / NOAA Weather RX / Wideband RX |
|---|---|
| Modes: | AM, FM, USB, LSB |
| Memory channels: | 999 |
Features
CTCSS / DCS / DTMF / Dual VFO / Flashlight / Frequency Copy / Programmable Buttons / Roger Beep / Scan / Signal Meter / Speaker / Spectrum / Split Operation / Timeout Timer / USB Charging / Voice Changer / VOX
Transmitter
| Minimum RF output (watts): | 1 |
|---|---|
| Maximum RF output (watts): | 10 |
Power
| Battery voltage: | 7.4v |
|---|---|
| Battery capacity (mAh): | 2500mAh (3000mAh on TK11(8) model) |
Physical
| Width (mm): | 60 |
|---|---|
| Height (mm): | 126 |
| Depth (mm): | 32.7 |
| Weight (g): | 284 |
| Connectors: | SMA, Microphone, Speaker Out |
Meta
| Also known as: | Quansheng TK11(5), Quansheng TK11(8), Quansheng Taiko Kong, Quansheng TK-11 |
|---|---|
| Year of release: | 2025 |
| Related radios: | Quansheng UV-K5, |
